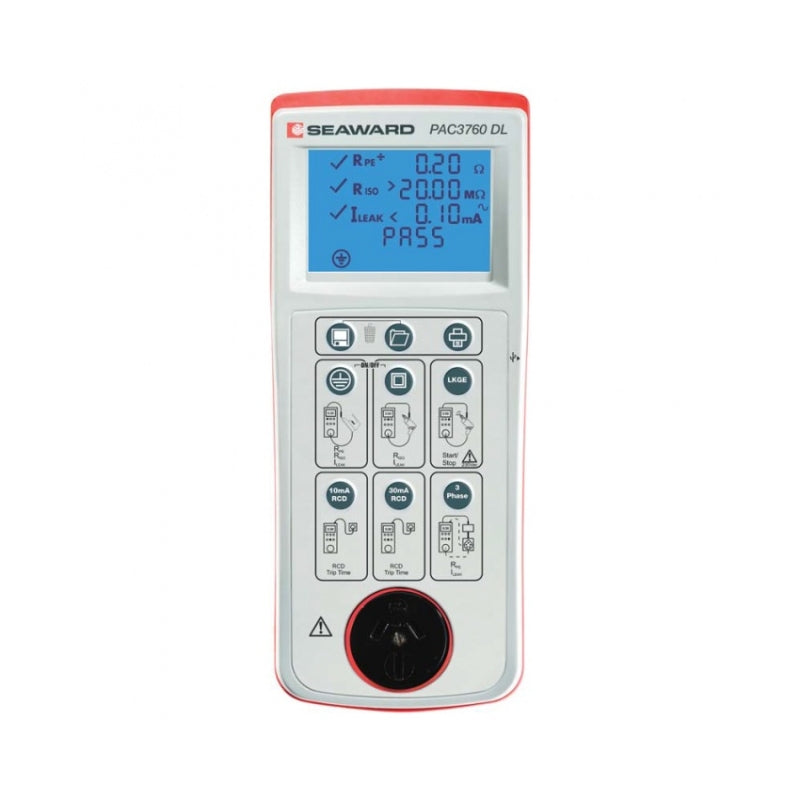

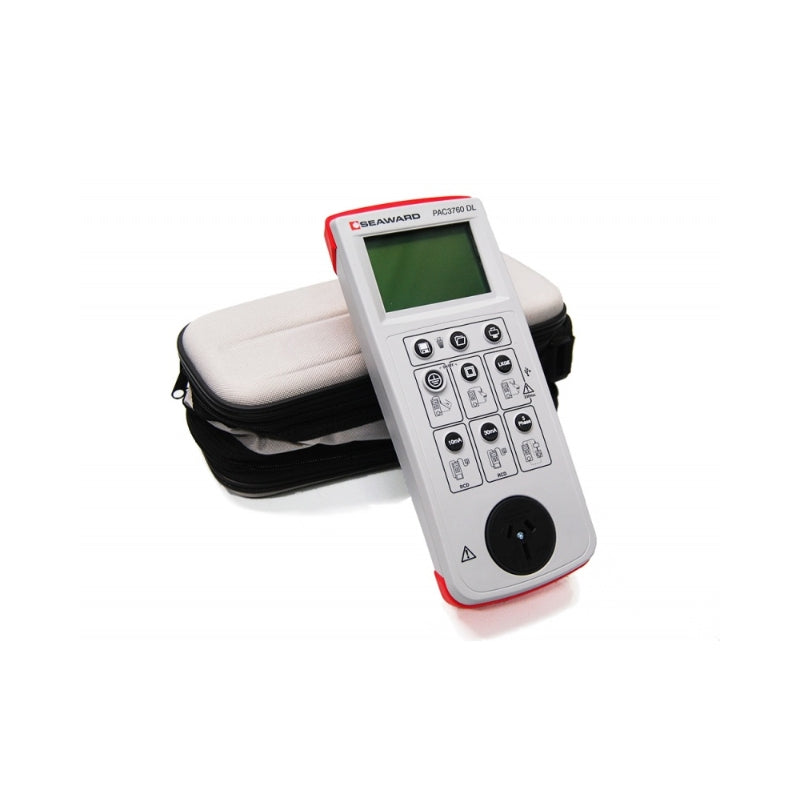

Seaward PAC3760 DL Appliance Tester
$1,538.00
Including GST
✔
Free Shipping
Seaward PAC3760 DL Appliance Tester
Seaward PAC3760 DL Appliance Tester
Australia's lowest cost data logging appliance tester - downloads test results to your electronic logbook. Test appliances, 10mA/30mA portable & fixed RCDs and three phase appliances with optional adaptor.
The Seaward PAC3760 DL is based on the PAC3760 series, Australia's most popular and easiest to use appliance testers. The PAC3760 DL includes download of test results to any spreadsheet or database program - no special software required!
The PAC3760 DL is a next generation PAT tester. It conducts earth bond,
insulation, polarity, portable RCD tests and fixed RCD tests, as well as Leakage Current Tests for Class I and Class II appliances and 3 phase appliances with optional adaptors.
PAC3760 DL Features
- Single push button operation
- Battery & mains powered
- Pass/Fail indication and actual readings
- Senses an IEC or extension lead and conducts a polarity test
- Detects if the appliance under test is not switched "On"
- 10mA & 30mA portable and fixed RCD trip time tests
- In-Built isolation transformer
- Stores 999 test results and downloads CSV file
- "Plug N Print" test tag printing - optional PAC-OPT test tag printer
- 3 phase leakage test - optional 3 phase adaptor required
Product Specs Seaward PAC3760
| PAC3760DL | Specifications |
|---|---|
| Display | Bright LCD |
| Indication | Pass/Fail, Measurement Value |
| Operation | Pass/Fail, Measurement Value |
| Enclosure | Hand-held, IP Rating IP40 |
| Leads | Earth Bond, IEC, Mains Supply, USB Download & Serial Printer |
| Interfaces | USB & Serial |
| On-Board Memory | 999 Test Results |
| Carry Case | Deluxe Padded |
| Dimensions(LxWxH) | 265 x 110 x 55mm |
| Weight | 0.8kg |
| Overvoltage Category | CAT II 300V |
| Electrical Safety | IEC61010-1:2001, IEC61326:2005 |
Product Specs Seaward PAC3760
| PAC3760DL | Tests Performed |
|---|---|
| Polarity | Yes |
| Earth Continuity | 200mA, 1ohm |
| Insulation Resistance | 500V DC, 1Mohm |
| Class I Leakage Current | 5mA |
| Class II Leakage Current | 1mA |
| MOV Devices Class I Leakage Current | 5mA |
| MOV Devices Class II Leakage Current | 1mA |
| Lead/Cord Extension Sets | 1mA |
| 10mA RCD (with in-built isolation transformer) | 40ms |
| 30mA RCD (with in-built isolation transformer) | 300ms |
| Optional 3 Phase Leakage Test | 5mA |
Are you looking for a complete system set up with printer? Check out the
ProTag Systems Comparison Chart Seaward
Please see our ProTag systems comparison chart. This is a comparison between the Seaward PT125 EL, ProTag PAC3760 DL, ProTag PrimeTest PRO Kit, ProTag Elite-PLUS. CLICK HERE
