Fieldpiece HS36 TRMS Stick Multimeter Kit with 400AAC Clamp Accessory

Packed with features HVAC-R Techs need & use every day

• Works with all accessory heads
• Non-contact voltage - built-in Volt stick
• MIicroamps DC for flame diodes
• 400 AAC with included Clamp Accessory
• Temperature up to 535 degrees C
• Lead storage

• DETAILS
• SPECIFICATIONS
• SHIPPING

• Fieldpiece HS36 TRMS Stick Multimeter Kit with 400AAC Clamp Accessory


  Our top of the line Stick Meter, the HS36 includes the ranges you use everyday for HVAC/R field service plus includes a bright blue backlight and True RMS. Like the rest of the HS30 series, the HS36 comes equipped with a magnetic hanger, along with detachable silicone test leads and alligator clip probe tips for remote and easy one-handed testing, as well as the full set of built-in safety features. This auto-ranging stick meter also includes a bar graph on the LCD for an analog feel. Technicians who prefer our expandable stick meters tell us this is the best digital multimeter for HVAC-R field service.

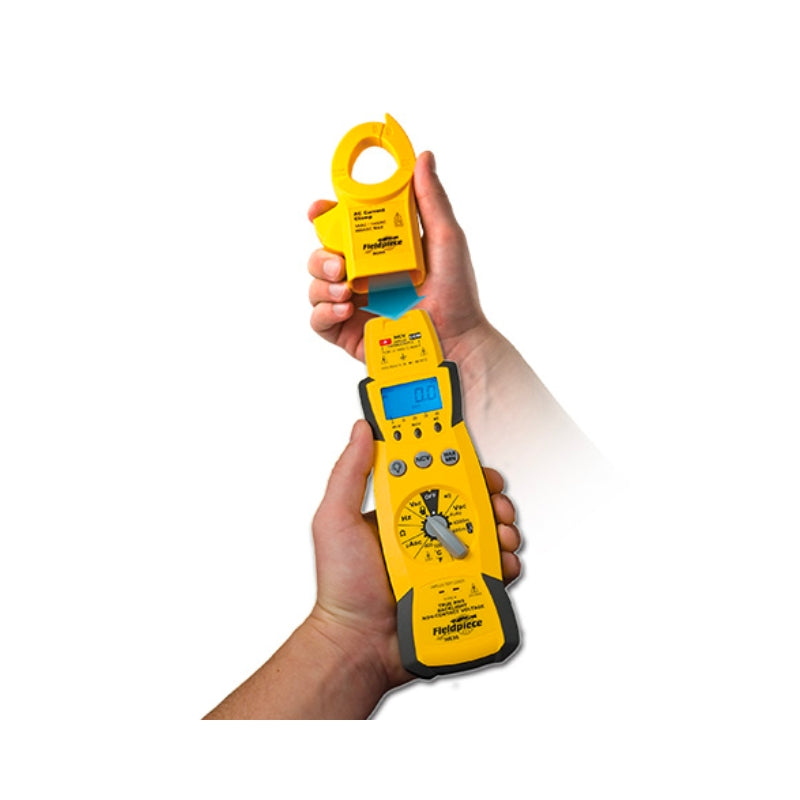

  The HS meter series is unlike any other found in HVAC-R. We incorporate a number of safety features, both those you can and can’t see, into our meters. In addition, the HS series accepts modular test instrument accessory heads, so you have more testing capabilities without buying a lot of expensive instruments. And it's packed with the features HVAC & R technicians need:

  Non-contact Voltage

  High Voltage and Continuity Indicators

  Microamps

  Capacitance

  MIN/MAX

  Temperature

  Silicone Leads with Detachable Probe Tips

  Rugged ABS case with rubberized bumpers

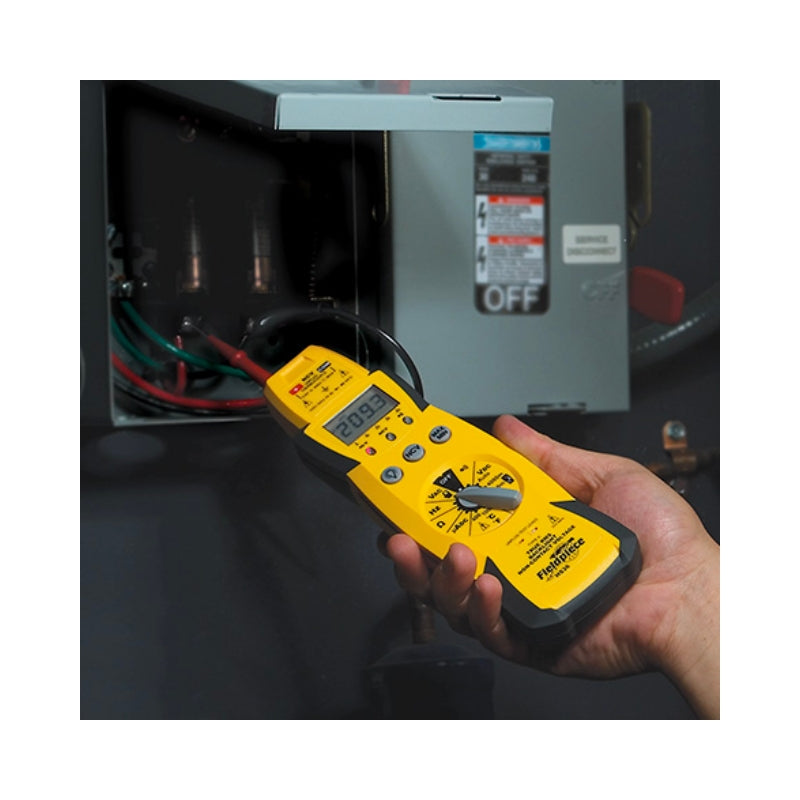

  Built-in magnetic hanger allows you to test with one hand or no-hands

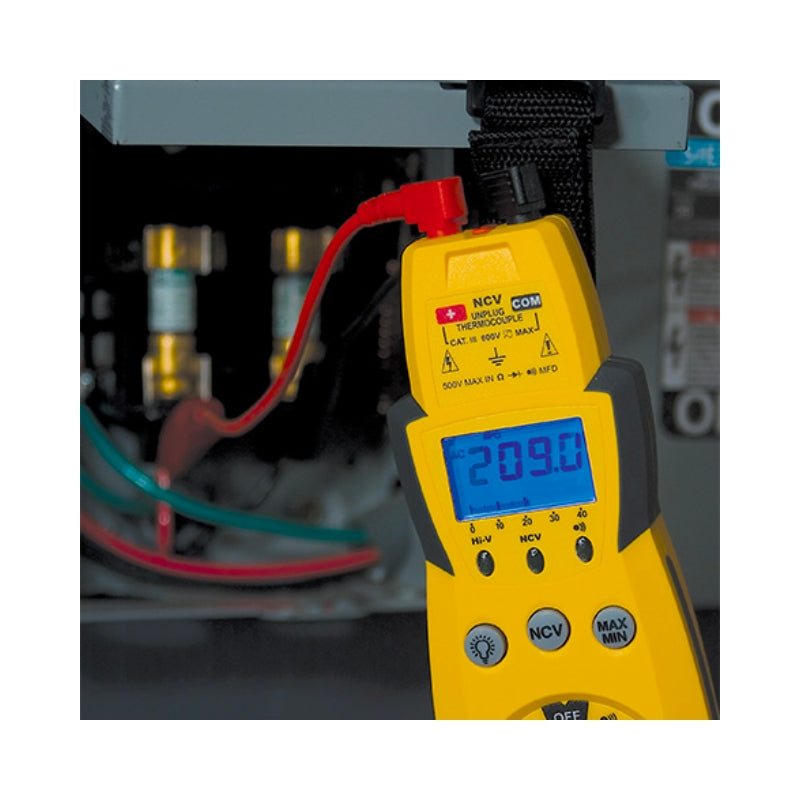

  Blue Back-Light

  Ergonomic shape fits naturally in your hand

  Auto power-off (APO) to conserve battery life

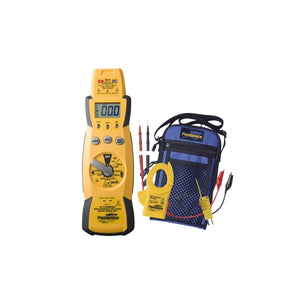

  WHAT'S INCLUDED

  Expandable True RMS Stick Multimeter with Backlight - HS36

  400A Amp Clamp Accessory - ACH4

  Deluxe Silicone Test Leads - ADLS2

  Short Alligator Lead Extensions - ASA2

  Deluxe Meter Case - ANC1

  9-Volt Battery (installed)

  Operator’s Manual

• Fieldpiece HS36 TRMS Stick Multimeter Kit with 400AAC Clamp Accessory


  Display: 3¾ digit liquid crystal display (LCD) with a maximum reading of 3999.

  Analog bar graph: 41 segments with measurements 20 times per second.

  Range (RNG): Manual ranging mode (HS35) Overrange: "OL" mark indication.

  Auto power off: 30 minutes.

  ​​Operating environment: 32°F to 122°F at <70% R.H.

  Storage temperature: -4°F to 140°F, 0 to 80% R.H. with battery removed.

  Accuracy:

  Specifications good in ambient conditions of 73°F ±9°F, <75% relative humidity.

  Temperature coefficient: 0.1×(specified accuracy) per °F. (32°F to 64°F, 82°F to 122°F).

  Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22.

  Battery life: 300 hours typical with alkaline.

  Accessories: One pair test leads, one pair alligator clips, k-type thermocouple, 9V battery (installed), and operating instructions.

  Safety: UL, CE, Cat III 600V, UL3111, IEC1010-1.

  Temperature Range: -30°F ~ 1000°F Resolution: 0.1°F Accuracy: ±(1°F) 32°F ~ 120°F, ±(1% + 1.5°F) -4°F ~750°F, ±(2% + 4°F) -30°F ~ -4°F, ±(2% + 4°F) 750°F ~ 1000°F

  Sensor type: K-type thermocouple

  Overload protection: 60 VDC or 30 VAC rms

  Continuity Audible indication: Less than 40Ω Response time: 500ms Green LED will be on continuously.

  Overload protection: 500VDC or AC rms

  ​DC volts Ranges: 400mV, 4000mV, 40V, 400V, 600V

  Resolution: 0.1mV Accuracy: ±(0.5% rdg + 2 dgt)

  Input impedance: 560kΩ on V inputs, 10MΩ on mV input

  Overload protection: 600VDC or AC rms

  Transient protection: 6kV for 10µ sec

  AC volts (50Hz - 500Hz) Ranges: 400mV, 4V, 40V, 400V, 600V

  Conversion: True RMS (HS36), average (HS35)

  Crest factor: Less than or equal to 3 (HS36)

  Resolution: 0.1mV Accuracy: ±(1.2% rdg + 5 dgts) 50Hz ~ 60Hz on 400mV range ±(1.5% rdg + 5 dgts) ±(2% rdg + 5 dgts) on 600V range

  Input impedance: 560kΩ

  Overload protection: 600V DC or AC rms

  Transient protection: 6kV for 10µ sec

  ​DC current Ranges: 400µA, 4000µA Resolution: 0.1µA

  Accuracy: ±(1.0% rdg + 2 dgt) Voltage burden: 200mV, (2V on 4000µA range)

  Input protection: 250mA/600V (6.3×32 mm fast blow ceramic fuse), part number RFM66

  Resistance Ranges: 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ

  Resolution: 0.1Ω Accuracy: ±(1.0% rdg + 4 dgts) on 400Ω to 400kΩ ranges ±(1.5% rdg + 4 dgts) on 4MΩ range ±(3.0% rdg + 5 dgts) on 40MΩ range

  Open circuit volts: -0.45VDC typical, (-1.2VDC on 400Ω range)

  Overload protection: 500VDC or AC rms

  Capacitance Range: 400µF Resolution: 0.1µF

  Accuracy: ±(3% rdg + 5 dgts)

  Input protection: 250mA/600V (6.3×32 mm fast blow ceramic fuse), part number RFM66

  Frequency Ranges: 4k, 40k, 400k, 4M, 40MHz

  Resolution: 1Hz Accuracy: ±(0.1% rdg + 3 dgts)

  Sensitivity: 10Hz ~ 4MHz: > 1Vrms, 4MHz ~ 40MHz: > 2Vrms, <5Vrms

  Minimum pulse width: > 25ns Duty cycle limits: > 30% and < 70%

  Overload protection: 500VDC or AC rms

  SKUHS36

  BrandFieldpiece

  Shipping Weight 1.5000kg

  Shipping Width0.200m

  Shipping Height 0.100m

  Shipping Length 0.350m

  Shipping Cubic 0.007000000m3

  Unit Of Measure ea

  Assembled Length 0.350m

  Assembled Height 0.100m

  Assembled Width 0.200m

• Fieldpiece HS36 TRMS Stick Multimeter Kit with 400AAC Clamp Accessory
