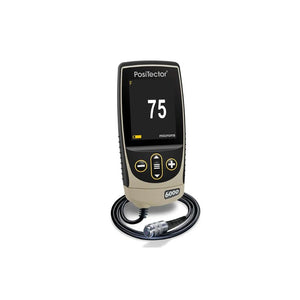

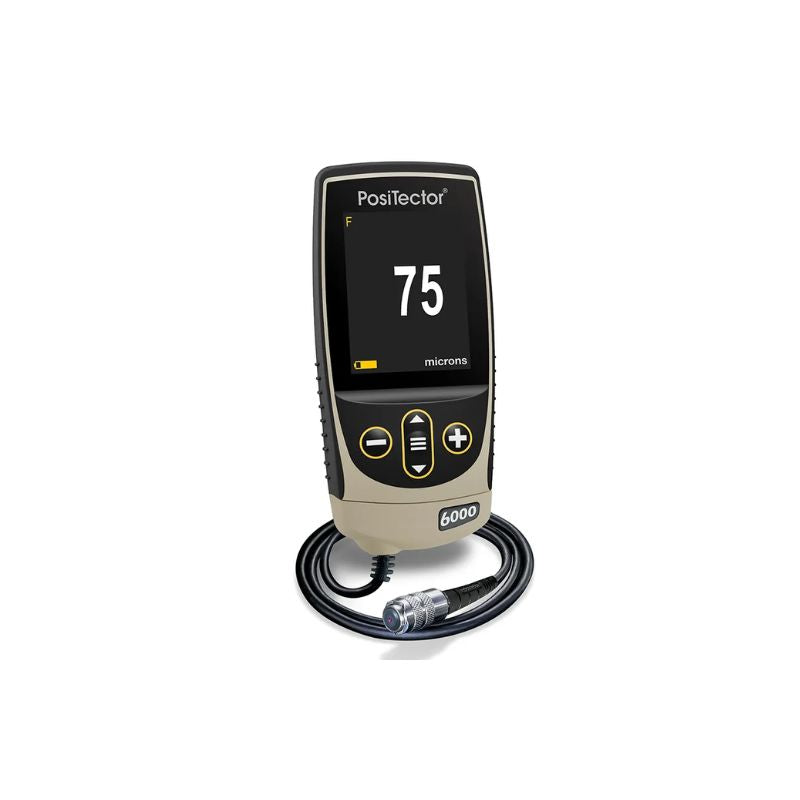

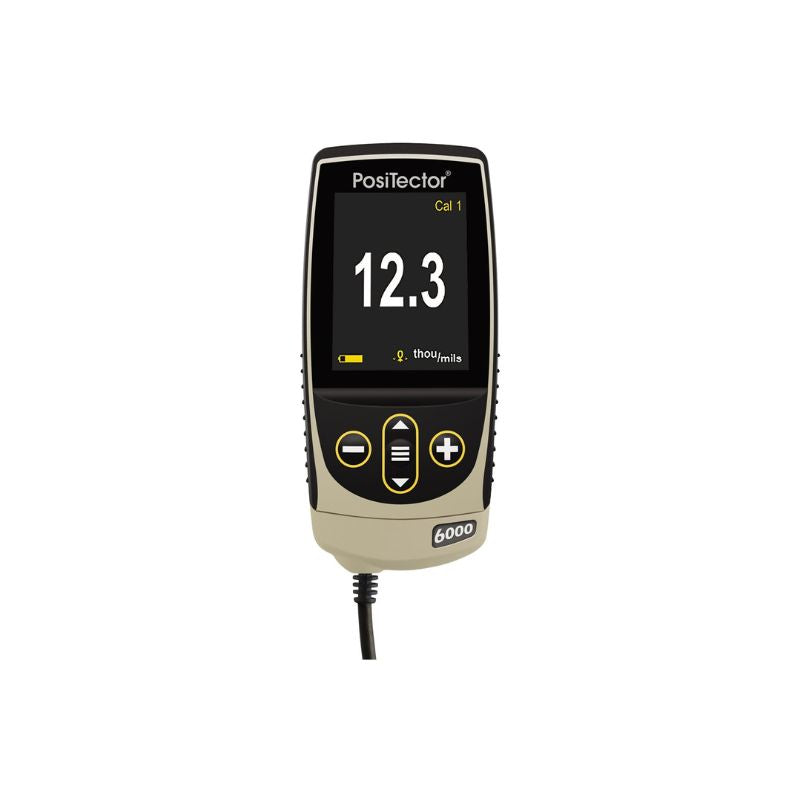

Defelsko PosiTector 6000 FNS3 Advanced Coating Thickness Gauge
$2,731.00
Including GST
✔
Free Shipping
- Defelsko PosiTector 6000 FNS3 Advanced Coating Thickness Gauge with cabled probe for general coating inspection up to 1500um
- Includes Advanced PosiTector gauge body and FNS cabled probe
- Measures coatings on any metal from 0 - 1500 um
- Advanced model includes Bluetooth, WiFi, Touchscreen, Storage for 250,000 readings and advanced measuring modes
- Certificate of Calibration showing traceability to NIST or PTB included (Long Form)
-
DEFELSKO POSITECTOR 6000 FNS3 ADVANCED BODY
This advanced kit includes the following.
Storage of 250,000 readings in up to 1,000 batches and sub-batches
Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading
3 Scan Modes — increase measurement speed to 180+ readings per minute: Normal, Statistics and Limited Average Count
Touchscreen keyboard for quickly renaming batches, adding notes, and more
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
Calibration Adjustment Reporting feature documents calibration adjustments into PosiSoft software reports
SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
Connect a Bluetooth barcode scanner or keyboard to instantly annotate readings and batches
Defelsko PosiTector 6000 FNS3 Applications
Measuring dry film thickness (DFT) on ferrous and non-ferrous substrates
Coatings on stainless steel
Paint thickness on aluminium or steel car panels
Galvanising thickness on steel
Almost any application of measuring coating on metal substrates
Defelsko PosiTector 6000 FNS3 - Simple
Fast measurement speed—60+ readings per minute. Enhanced FAST mode—90+ readings per minute for quick inspection
Ready to measure—no adjustment required for most applications
Large 2.8" impact resistant color screen with redesigned keypad for quick menu navigation
On-gage help explains menu items at the touch of a button
Flashing display—ideal in a noisy environment
RESET feature instantly restores factory settings
Defelsko PosiTector 6000 FNS3 - Powerful
Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
Screen Capture—save 100 screen images for record keeping and review
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
Instant-on feature quickly powers up the gage if recently powered down
Up to 30% longer battery life
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
Every stored measurement is date and time stamped
Software Updates via web keep your gage current
Software Solutions for viewing, analyzing & reporting data
Defelsko PosiTector 6000 FNS3 - Durable
Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
Ergonomic design with durable rubberized grip
Wear-resistant ruby probe tip, for long lasting calibration
Shock-absorbing, protective rubber holster for added impact resistance
Two year warranty on gage body AND probe
Defelsko PosiTector 6000 FNS3 - Accurate
Certificate of Calibration showing traceability to NIST or PTB included
Built-in temperature compensation ensures measurement accuracy
Hi-RES mode increases displayed resolution for precision applications
Conforms to ISO 2178/2360/2808, ISO 19840, ASTM B244/B499/D1186/D1400/D7091/E376/G12, BS3900-C5, SSPC-PA2, US Navy NAVSEA PPI 63101-000, US Navy NAVSEA 009-32, AS 2331.1.4, AS3894.3-B, and others
Storage of 1,000 readings per probe—stored readings can be viewed or downloaded (Standard model)
Defelsko PosiTector 6000 FNS3 - Versatile

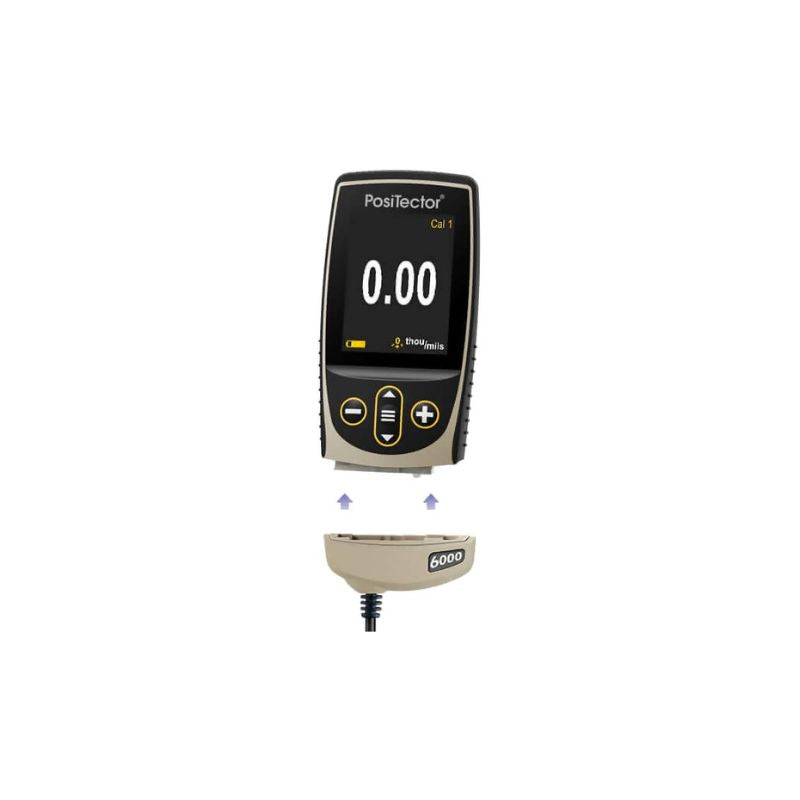

PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, GLS and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, hardness tester, gloss meter or ultrasonic wall thickness gage
Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

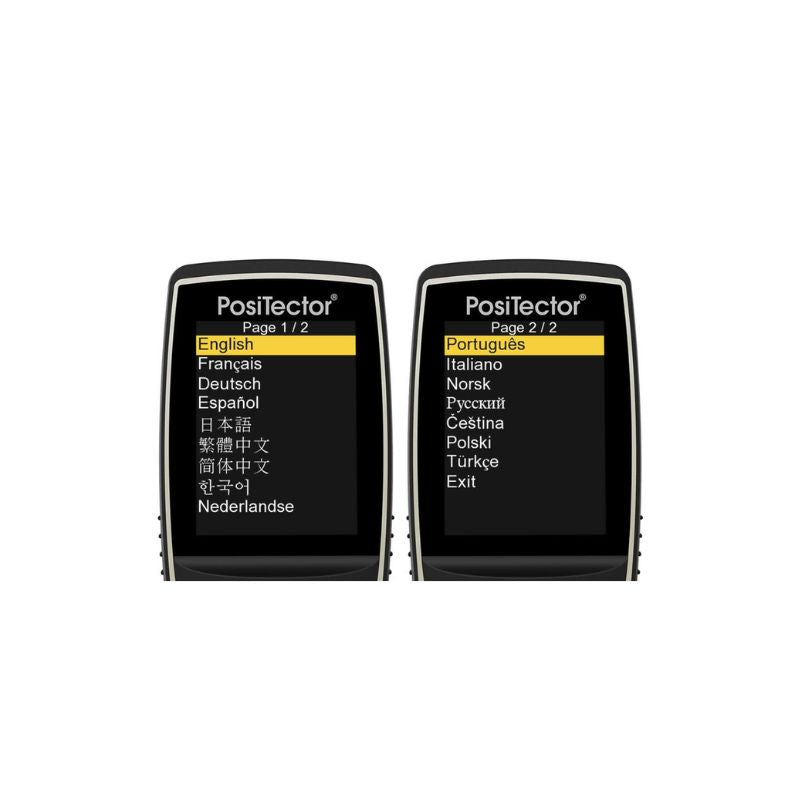

Selectable display languages
Auto rotating display with Flip Lock
Mils/Microns switchable
Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
