CPS Airflow Capture Hood with Environmental Meter ABM-HOOD-200
$913.00
Including GST
✔
Free Shipping

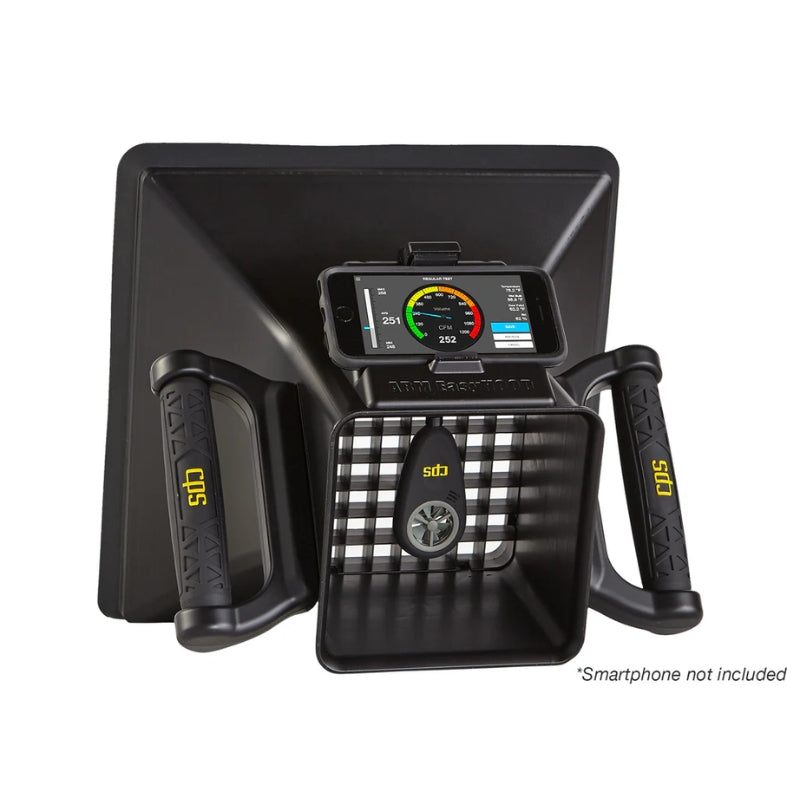

CPS Airflow Capture Hood with Environmental Meter ABM-HOOD-200
- Comprehensive Package: Includes the ABM-200 meter, padded carrying case, expansion hood (for grilles up to 24″ x 24″), and a low airflow adapter.

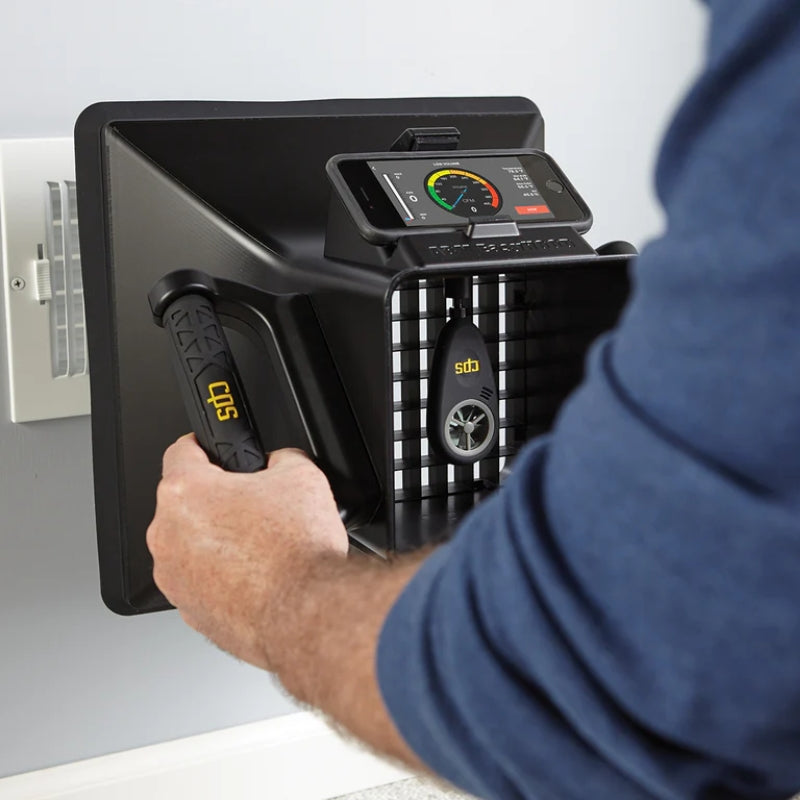

- Quick Measurements: Utilizes a smartphone to display, capture, and record real-time airflow data from air grilles ranging from 12″ to 24″.
- Flexible Compatibility: Works with both the ABM-200 and the separately available ABM-100 for versatile testing options.
- Effortless Reporting: Stores readings on your smart device and automatically generates professional reports for customer communication.
- Multiple Test Modes: Supports regular tests for up to 12″ x 12″ and extended tests up to 24″ x 24″ with the expansion hood.
- Enhanced Accuracy: Features a low-volume reducer plate for readings down to 7 CFM, combined with a vortex air straightener and rugged control box for reliable results.
Specifications - CPS Airflow Capture Hood with Environmental Meter ABM-HOOD-200
| Specification | Detail |
|---|---|
| Hood Opening | 12″ x 12″ (0.3 m x 0.3 m) |
| Expansion Hood Opening | 24″ x 24″ (0.6 m x 0.6 m) |
| Weight (with Expansion Hood) | 4.75 lb (2.15 kg) |
| Hood Dimensions (with Expansion Hood) | 17.75″ H x 25″ W x 25″ D (0.45 m x 0.63 m x 0.63 m) |
| Wireless Connection Range | ≤100 ft (30.5 m) |
| Airflow Volume (Regular Test) | 35 – 1,200 CFM (59 – 2,039 m³/h) |
| Airflow Volume (Low Test) | 7 – 100 CFM (12 – 170 m³/h) |
| Relative Humidity Range | 0 – 85%, Accuracy: ±4% |
| Operating Temperature | 0°F to 140°F (-18°C to 60°C), Accuracy: ±0.7°F (0.4°C) |
| Auto Power Off | Activates after 30 sec of no connection or upon closing the app |
| Battery Type | CR2450 Coin Cell (Lithium) installed in the ABM-200 |
| Battery Life | Over 500 hrs |
| Calibration & Certification | Verified per ANSI AMCA 201-207; calibration and testing performed at an AMCA Certified Laboratory following ANSI/AMCA 210/51 methods |
