NIVCOMP Digital Level NI0SD1-H25-xx MSD Card
$1,584.00
Including GST
✔
Free Shipping
NIVCOMP Digital Level NI0SD1-H25-xx MSD Card
-
The Nivcomp is an innovative tool that replaces the traditional hose levelling instrument with a modern, maintenance-free sensor module. It provides direct altitude indication in millimetres or inches, making it easy to measure uneven surfaces, gradients, and obstacles where the line of sight is blocked. The handheld device contains sensing technology to acquire the altitude difference to the reservoir in the hose reel, which serves as the point of reference during levelling.
-

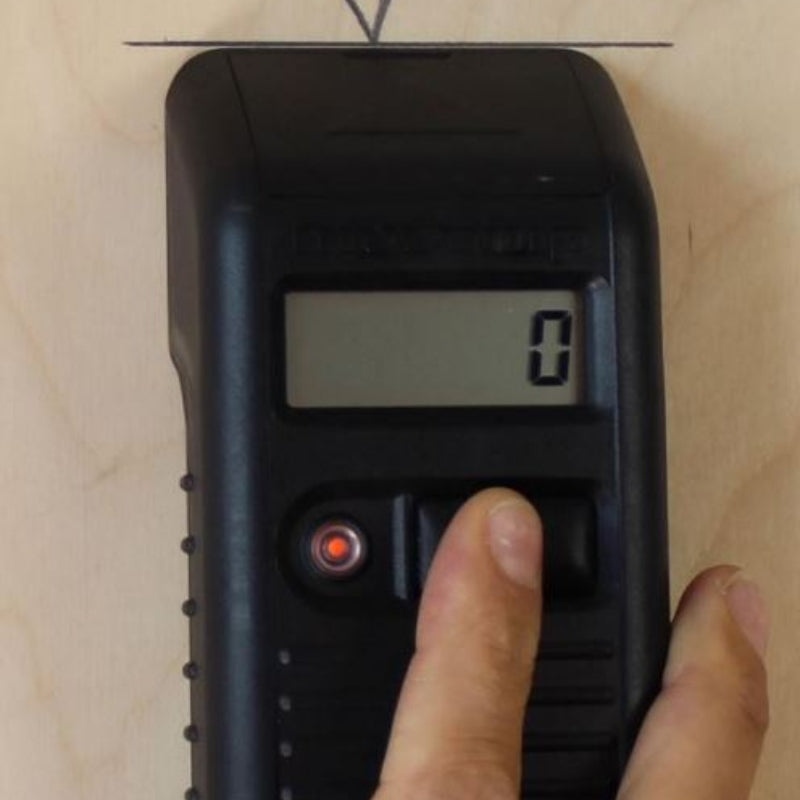

To transmit a level to another point, simply line up the handheld device against this level and save it as zero-reference per keystroke. Every following change in altitude of the handheld device is indicated in millimeters or inches, along with the direction (arrows or +/-). This applies to every point within a radius of 24 meters to the hose reel. The patented recording of the liquid’s temperature makes optimal results possible, even in outdoor applications (complying with respective directions). The solid and double-walled PP-case with space for optional accessories guarantees easy hose pull-out and rewinding.
NIVCOMP Digital Level NI0SD1-H25-xx MSD Card

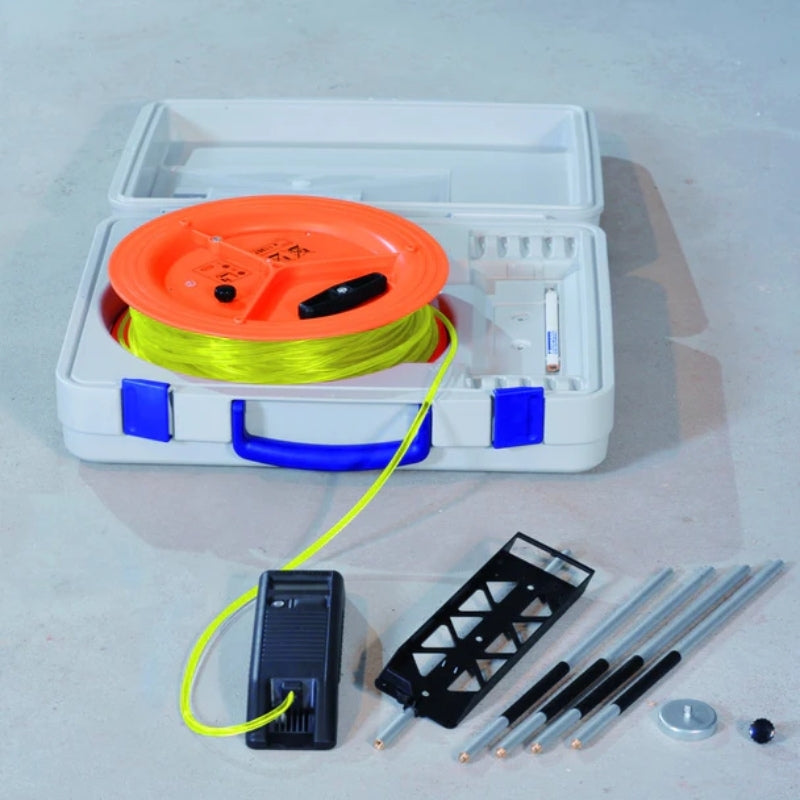

Here's everything that's included with this product.
- Nivcomp Digital Level
- Integrated Accessory H Set
- 5 Year Warranty On All Electronic Components
- Manual English
NIVCOMP Digital Level NI0SD1-H25-xx MSD Card Technical Data
- The Nivcomp is compatible with all PC systems with USB interface (standard) and uses microSD- or microSDHC-card as memory-medium. It has a capacity of up to 500 level-points/series and 65,000 series/card, with a file format of HTML (.htm) and text (.txt). The card-slot is located at the hand-unit-rear, with lock and ejection on push. The tool has a range of features, including no line of sight required, LC display on the handset, owner calibration mode, and auto switch-off after 30 minutes.
NIVCOMP DIGITAL LEVEL NI0SD1-H25-XX MSD CARD Building Inspections
-
The Nivcomp is a highly useful tool for building inspections in Australia. It provides accurate and efficient measurement of the vertical differences between different points, which is essential for assessing the integrity of a building's structure.
-
When performing building inspections, it is important to be able to measure heights and elevations accurately and easily. With the Nivcomp, building inspectors can quickly and easily determine if there are any issues with a building's foundation, floors, or ceilings. The device is particularly useful for inspecting uneven surfaces and gradients, as well as for measuring across obstacles where the line of sight is blocked.
NIVCOMP DIGITAL LEVEL NI0SD1-H25-XX
NIVCOMP DIGITAL LEVEL NI0SD1-H25-XX MSD CARD Engineering
- Similarly, in the engineering industry, the NIVCOMP Digital Level NI0SD1-H25-XX MSD CARD can be used to measure angles and slopes in the design and development of mechanical and electrical systems. This ensures that these systems are installed and aligned correctly to operate effectively.
NIVCOMP DIGITAL LEVEL NI0SD1-H25-XX Surveying
- In the surveying industry, the NIVCOMP Digital Level NI0SD1-H25-XX MSD CARD can be used to measure the elevation and slope of land and terrain. This is particularly useful in the construction of roads, highways, and railways, where accurate slope measurements are required to ensure proper drainage and prevent erosion.
NIVCOMP Digital Level
Introducing the NI0SD1-H25-XX MSD CARD, an advanced measuring instrument that merges the accuracy of a conventional Water level with the ease and precision of digital innovation. Its purpose is to deliver swift, precise, and dependable measurements across a diverse array of uses.
NIVCOMP Digital Level Precision
Equipped with a high-precision electronic sensor, the Nivcomp NI0SD1-H25-XX MSD CARD has the capacity to gauge angles and inclines with a precision of up to 0.1 degrees. The incorporated microprocessor guarantees swift, dependable measurements, conveniently displayed on its sizable, high-resolution screen.
NIVCOMP Digital Level Rugged
Benefitting from its robust and enduring build, the NIVCOMP Digital Level NI0SD1-H25-XX MSD CARD remains resilient in the face of the most demanding operational circumstances, purposefully engineered to endure the challenging Australian site conditions. Crafted to resist moisture and dust, its design renders it exceptionally suitable for rugged settings.
Nivcomp Digital Level NI0SD1-H25-XX MSD CARD
- Measuring principle Analog with digital display
- Reproducibility (indoors, typical) ± 2 mm

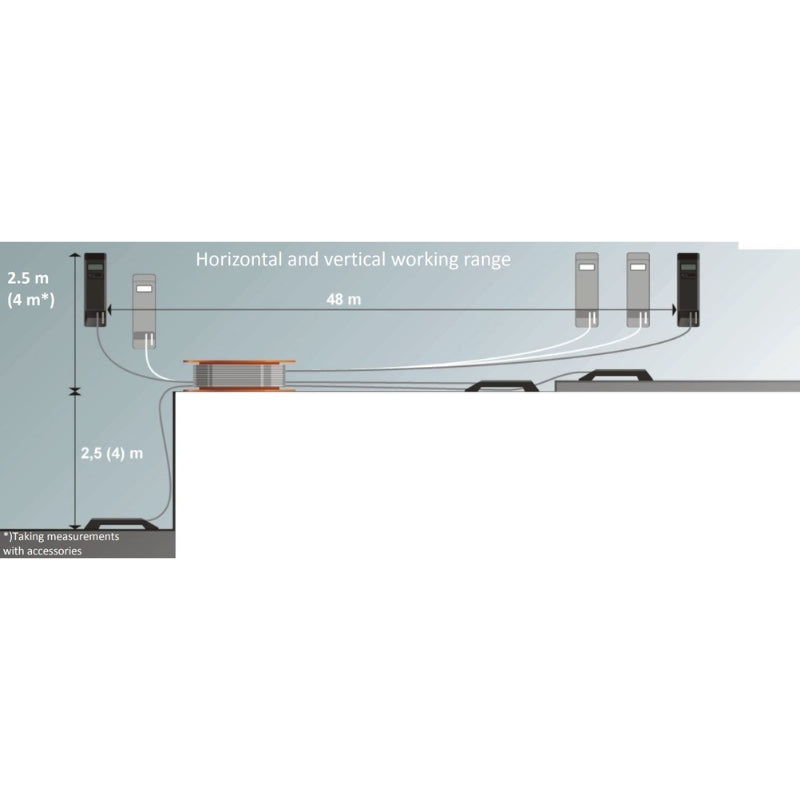

- Maximum measuring point distance 48m
- Vertical working range ± 2.5 m (± 4.0 m)
- Height display mm / inch
- Resolution 1 mm (prefixes 0.3 mm)
- Approx. temperature range for use 0 ... +35 °C
- Battery for hand-held unit 1 x AA (alkaline) 1.5 V
- Power required / On-time ~ 10 mW / >– 250 h
- Automatic switch-off 33 min. after pressing a button
- Flashing indicator 3V / Li
- Certification RoHS compliant
- Weight 5.5 kg
- Dimensions 450 x 420 x 150 mm
