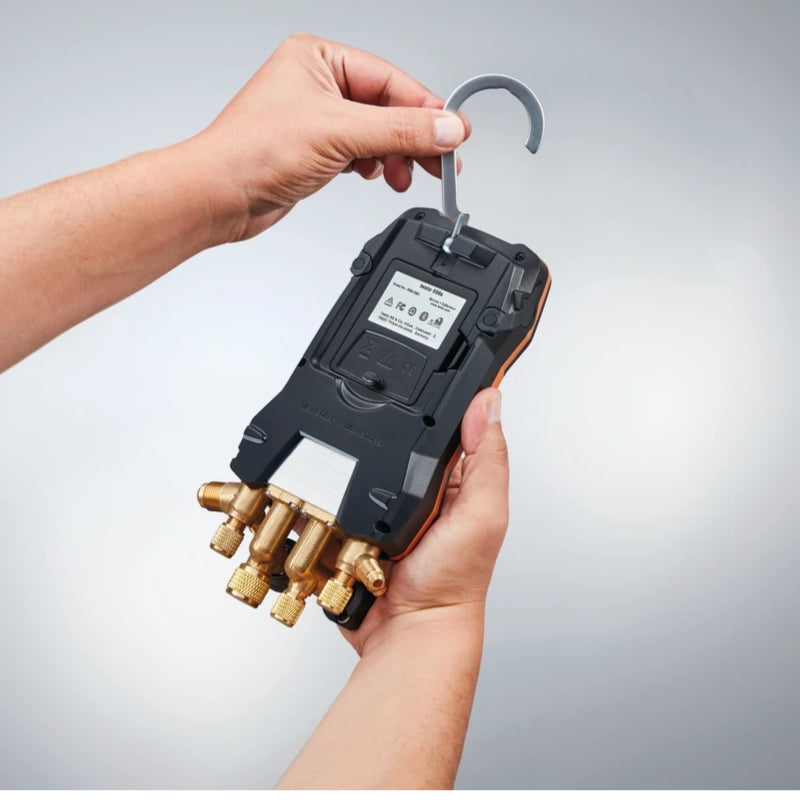

testo 558s Smart Vacuum Kit Digital manifold with wireless temperature and vacuum probes
$1,441.00
Including GST
✔
Free Shipping
testo 558s Smart Vacuum Kit – Smart digital manifold with wireless temperature and vacuum probes
Product Code - 0564 5582
Features of the testo 558s Smart Vacuum Kit
- High-resolution colour touchscreen for intuitive control and visualisation
- Wireless connectivity to included temperature and vacuum probes
- Dual operation via touchscreen and physical keypad — ideal when wearing gloves
- Compatible with flammable A3 and A2L refrigerants for safe use in all environments
- Rugged, weather-resistant housing with IP54 protection rating
- Rechargeable via USB-C or standard AA batteries for flexible power options
- Integrated data logging with 30-minute trend visualisation (extendable via app)
- Seamless integration with the testo Smart App for fast documentation and sharing
Why the testo 558s Smart Vacuum Kit is Ideal for HVAC and Refrigeration Work
The testo 558s Smart Vacuum Kit is a complete solution for professionals in the HVAC and refrigeration industry. Whether you’re performing evacuations, charging systems, or checking system health, this digital manifold delivers precision, flexibility, and wireless freedom. This smart tool is designed for:
- Digital refrigerant analysis with full system visualisation
- Real-time vacuum and temperature measurements
- Superheat and subcooling calculations with automatic display
- Leak testing, evacuation, Delta T checks, and system filling
- Efficient servicing, installation, and commissioning work
With built-in support for over 96 refrigerants, automatic favourites, Bluetooth 5.0 connectivity, and future-proof OTA updates, the testo 558s ensures your toolkit stays up to date.
Technical Specifications – testo 558s Smart Vacuum Kit
Temperature Measurement
| Specification | Value |
|---|---|
| Measuring Range | -50 to +150 °C |
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| Probe Connection | 2 x Plug-in (NTC) |
Pressure Measurement
| Specification | Value |
|---|---|
| Measuring Range | -1 to 60 bar |
| Accuracy | ±0.25 % full scale |
| Resolution | 0.01 bar |
| Connections | 3 x 7/16" – UNF, 1 x 5/8" – UNF |
| Overload Protection | 65 bar (low & high side) |
General Specifications
| Specification | Value |
|---|---|
| Weight | 1.3 kg |
| Dimensions | 229 x 112.5 x 71 mm |
| Operating Temperature | -20 to +50 °C |
| Storage Temperature | -20 to +60 °C |
| Protection Class | IP54 |
| Auto Power-Off | After 10 minutes |
| Battery Life | Up to 70 hours with Bluetooth and backlight |
| Battery Type | Rechargeable LI 18650 & 3 x AA |
| Display | Capacitive touchscreen |
| Wireless Range | Up to 150 m |
| Bluetooth Version | 5.0 |
What’s Included in the Smart Vacuum Kit
- testo 558s digital 4-way manifold with touchscreen
- 1 x testo 552i – App-controlled wireless vacuum probe
- 2 x testo 115i – Clamp thermometers operated via smartphone
- USB-C charging cable
- Calibration protocol
- Instruction manual
- testo Smart App (free download available for iOS and Android)
Frequently Asked Questions – testo 558s Smart Vacuum Kit
Q: What’s the difference between this kit and the standalone 558s manifold?
The Smart Vacuum Kit includes the testo 552i vacuum probe and two testo 115i temperature clamps, giving you a complete wireless measurement system for pressure, vacuum, and temperature.
Q: Is the manifold suitable for use with flammable refrigerants?
Yes, the testo 558s is compatible with A3 and A2L refrigerants, meeting current safety requirements for HVAC and refrigeration work.
Q: Can I log and export data for reporting?
Yes, the manifold allows you to log data internally for up to 30 minutes, and extended data logging (up to 72 hours) is available via the testo Smart App. Reports can be instantly exported as PDFs.
Q: Will the manifold stay updated as refrigerants and systems change?
Absolutely. The testo 558s supports over-the-air updates via the app, ensuring you always have the latest refrigerants and connectivity options.
