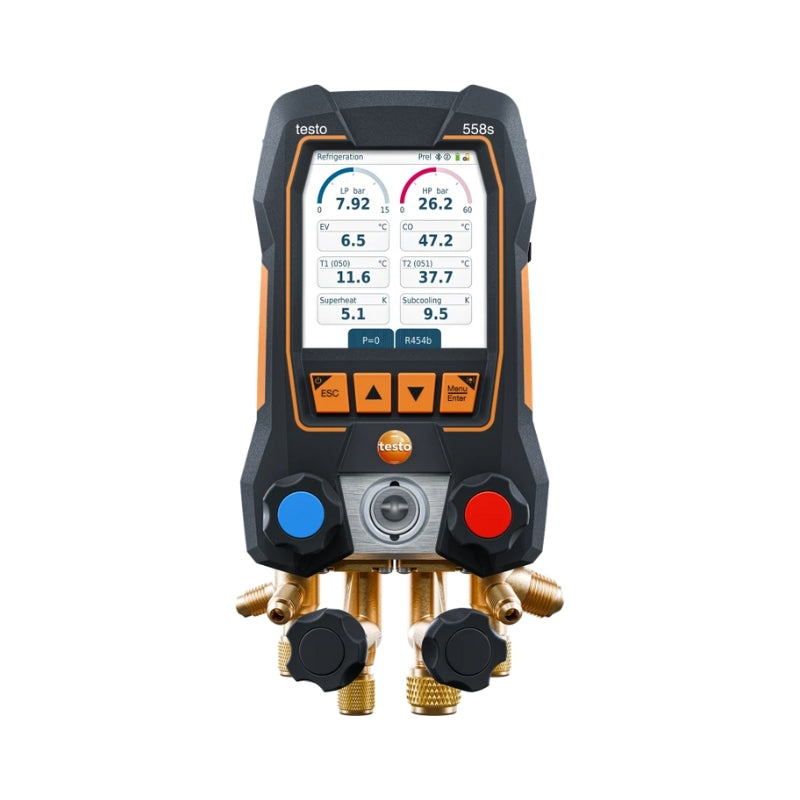

testo 558s Smart Vacuum Kit with clamp meter digital manifold with clamp meter and wireless temperature and vacuum probes
$1,903.00
Including GST
✔
Free Shipping
testo 558s Smart Vacuum Kit with Clamp Meter – Smart digital manifold with clamp meter and wireless temperature and vacuum probes
Product Code - 0564 5584
Main Features of the testo 558s Smart Vacuum Kit with Clamp Meter
- Smart manifold with large colour touchscreen for system visualisation and data logging
- Wireless clamp thermometers and vacuum probe included for complete system diagnostics
- testo 770-3 clamp meter for measuring current, voltage, and power values on-site
- Dual operation using responsive touchscreen or physical buttons for gloved hands
- Hybrid power options: USB-C rechargeable and AA battery compatible
- Designed for A3 and A2L refrigerant systems with full safety compliance
- Rugged IP54 housing ideal for rough field environments
- Bluetooth 5.0 connectivity with up to 150 m wireless range
- Full system control, logging, and report generation through the testo Smart App
Why Choose the testo 558s Smart Vacuum Kit with Clamp Meter?
The testo 558s Smart Vacuum Kit with Clamp Meter is the ultimate all-in-one solution for refrigeration and HVAC technicians looking to measure pressure, temperature, vacuum, and electrical values in one compact, integrated system. Perfect for:
- Charging, evacuating, and analysing refrigerant systems
- Performing real-time electrical diagnostics using the included clamp meter
- Monitoring superheating, subcooling, Delta T, and power usage
- Logging and exporting system data directly from the job site
- Meeting the demands of both residential and commercial work environments
With intuitive software integration, wireless flexibility, and robust hardware, this kit helps professionals streamline their workflow, save time, and improve service accuracy.
Technical Specifications – testo 558s Smart Vacuum Kit with Clamp Meter
Temperature Measurement
| Specification | Value |
|---|---|
| Measuring Range | -50 to +150 °C |
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| Probe Connection | 2 x Plug-in (NTC) |
Pressure Measurement
| Specification | Value |
|---|---|
| Measuring Range | -1 to 60 bar |
| Accuracy | ±0.25 % full scale |
| Resolution | 0.01 bar |
| Connections | 3 x 7/16" – UNF, 1 x 5/8" – UNF |
| Overload Protection | 65 bar (low & high side) |
General Specifications
| Specification | Value |
|---|---|
| Weight | 1.3 kg |
| Dimensions | 229 x 112.5 x 71 mm |
| Operating Temperature | -20 to +50 °C |
| Storage Temperature | -20 to +60 °C |
| Protection Class | IP54 |
| Auto Power-Off | After 10 minutes |
| Battery Life | Up to 70 hours with Bluetooth and backlight |
| Battery Type | Rechargeable LI 18650 & 3 x AA |
| Display | Capacitive touchscreen |
| Wireless Range | Up to 150 m |
| Bluetooth Version | 5.0 |
What’s Included in the Smart Vacuum Kit with Clamp Meter
- testo 558s digital 4-way manifold with intuitive touchscreen
- 2 x testo 115i wireless clamp thermometers
- 1 x testo 552i wireless vacuum probe
- 1 x testo 770-3 clamp meter
- USB-C charging cable
- Transport case
- Calibration protocol
- Instruction manual
- Free download: testo Smart App (iOS and Android)
Frequently Asked Questions – testo 558s Smart Vacuum Kit with Clamp Meter
Q: What additional functionality does the clamp meter provide?
The testo 770-3 clamp meter allows you to measure current, voltage, power, and more — making it ideal for comprehensive HVAC electrical diagnostics alongside system performance checks.
Q: Does the clamp meter connect to the Smart App?
Yes, the testo 770-3 connects via Bluetooth and works seamlessly with the Smart App for real-time readings and reporting.
Q: Is this kit suitable for modern refrigerants like A2L?
Absolutely. The manifold is fully compatible with both A3 and A2L refrigerants, offering safe and reliable performance.
Q: How are system readings logged and shared?
Data can be recorded on the manifold for up to 30 minutes or extended to 72 hours using the Smart App. Reports can be created and sent instantly from the field.
Q: Is the manifold future-proof?
Yes. The testo 558s supports over-the-air updates to ensure ongoing compatibility with new refrigerants and connected devices.
