How to use an AC Vacuum Pump

HVAC Vacuum Pump guide - Advanced Tools

Using an air conditioning (AC) vacuum pump is a crucial step in maintaining and servicing HVAC systems. Whether you’re a seasoned professional or a DIY enthusiast, understanding how to use an AC vacuum pump effectively ensures optimal performance and longevity of your system. This guide will take you through the step-by-step process of using an AC vacuum pump to evacuate an air conditioning system and prepare it for refrigerant charging.

What Is an AC Vacuum Pump and Why Is It Important?

An AC vacuum pump is a specialised tool used to remove air, moisture, and contaminants from an HVAC system. Proper evacuation is critical because:

• Moisture and air in the system can cause inefficiencies by reducing the cooling capacity and increasing energy consumption.
• Contaminants lead to corrosion and damage to internal components.
• Evacuation ensures proper refrigerant flow, enhancing the system's performance and lifespan.

Tools and Materials Needed

Before starting, ensure you have the following tools and materials:

• AC vacuum pump (ensure it matches your system’s requirements)
• HVAC manifold gauge set
• Hoses compatible with the system
• Schrader valve core remover (if applicable)
• Safety gear (gloves and safety goggles)
• Nitrogen tank with regulator

Step-by-Step Guide on Using an AC Vacuum Pump

Step 1: Prepare the System

1. Turn Off the System: Ensure the HVAC system is powered off to avoid accidents.
2. Inspect the Components: Check the hoses, connections, and fittings for any signs of wear or leaks. Replace damaged parts as needed.

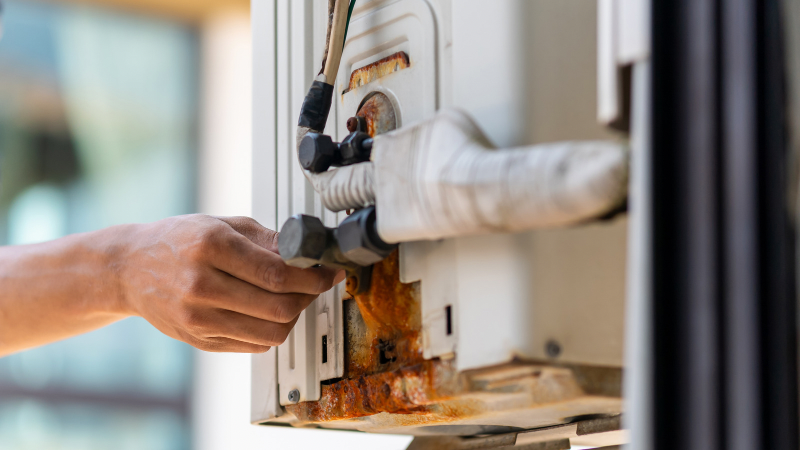

3. Access the Service Ports: Locate the high-pressure and low-pressure service ports on the system. These are usually marked on the unit.

Step 2: Connect the Manifold Gauge Set

1. Attach the blue hose to the low-pressure port.
2. Attach the red hose to the high-pressure port.
3. Connect the yellow hose to the vacuum pump inlet.

Step 3: Use Nitrogen to Flush the System

1. Connect the Nitrogen Tank: Attach the nitrogen regulator to the system and use it to flush out any remaining contaminants or moisture.
2. Regulate Pressure: Ensure the pressure does not exceed system limitations while flushing.
3. Release the Nitrogen: Open the system’s valves briefly to release the nitrogen and contaminants.

Step 4: Perform the First Standing Test

1. Close all manifold valves.
2. Pressurise the system with nitrogen to the recommended test pressure.
3. Let the system sit for 15–30 minutes to monitor pressure stability.
4. Stable Pressure: Indicates no leaks.
5. Pressure Drop: Suggests a leak that needs to be located and repaired.

Step 5: Perform the Second Standing Test

1. Once any leaks are fixed, repeat the nitrogen pressurisation process.
2. Allow the system to stand for an additional 30 minutes.
3. Verify that the pressure remains stable, ensuring the system is leak-free.

Step 6: Evacuate the System

1. Power On the Vacuum Pump: Turn on the vacuum pump and open the manifold gauge valves.
2. Monitor the Vacuum Levels: Use the manifold gauge to monitor the vacuum pressure. Ideally, the system should reach a vacuum of 500 microns or lower.
3. Maintain the Vacuum: Let the pump run for at least 30–60 minutes to ensure all moisture and air are removed.

Step 7: Perform a Vacuum Hold Test

1. Close the manifold valves and turn off the vacuum pump.
2. Monitor the gauges for 15–30 minutes to check for pressure changes.
   • No Pressure Rise: Indicates no leaks, and the system is ready for refrigerant charging.
   • Pressure Rise: Suggests a leak or contamination, requiring further inspection.

Step 8: Finishing Off the Vacuum

1. Reopen the vacuum pump and let it run for an additional 15 minutes to ensure all contaminants are removed.
2. Shut off the pump and immediately close the manifold valves.

Step 9: Disconnect the Equipment

1. Turn off the vacuum pump.
2. Disconnect the yellow hose from the vacuum pump and the manifold gauge set.
3. Reinstall the Schrader valve cores (if removed).
4. Seal the service ports securely to prevent leaks.

Tips for Efficient AC System Evacuation

• Use a High-Quality Vacuum Pump: Opt for a pump with adequate CFM (cubic feet per minute) capacity for your system size.
• Replace Old Hoses: Ensure hoses are in good condition to prevent leaks.
• Keep the Pump Maintained: Regularly change the pump oil to maintain optimal performance.
• Use a Micron Gauge: For precise measurement of vacuum levels, a micron gauge is more reliable than standard manifold gauges.

Common Mistakes to Avoid

1. Skipping the Standing Tests: This can lead to undetected leaks, compromising the system.
2. Rushing the Evacuation Process: Ensure sufficient time for thorough evacuation.
3. Reusing Contaminated Hoses: Always inspect and clean hoses before use.
4. Ignoring Safety Precautions: Always wear gloves and goggles when handling refrigerants and equipment.

Why Regular Maintenance Matters

Regular evacuation and maintenance of your AC system help to:

• Prevent costly repairs
• Enhance system efficiency
• Prolong the lifespan of the equipment

By investing time in proper evacuation techniques, you’re ensuring your HVAC system operates at peak performance, delivering consistent cooling and energy savings.

Disclaimer

This guide is intended for informational purposes only and should not replace professional advice. Only licensed HVAC technicians should perform these procedures, as they involve handling pressurised equipment and refrigerants that can be hazardous if not managed correctly. Always follow local regulations and safety guidelines.

Conclusion

Using an AC vacuum pump is a fundamental step in maintaining HVAC systems. By following this guide, you’ll ensure that your air conditioning system is free of contaminants, operates efficiently, and remains durable over time. For high-quality vacuum pumps and essential HVAC tools, visit our AC Vacuum Pump Collection. We offer reliable and efficient equipment tailored to meet Australian standards.

If you have questions or need further assistance, don’t hesitate to contact our team of experts. We’re here to help with all your HVAC needs.
